What Is a Power Apps Code App? A Canvas Maker's Guide to the Architecture

For five years I've built canvas apps. Power Apps draws the app, I write Power Fx. That works, until I need a design the controls can't give me, a component I want to reuse across ten apps, or a real diff in source control.

Code apps turn it around: you build a normal web app in your own editor and Power Apps runs it, with sign-in, connectors and governance included. Coding agents write most of the code now, so the step from Power Fx to TypeScript is smaller than it looks. I'm learning them in public, in this series, and this first post is the map.

What a code app is

Microsoft's definition: code apps "let developers bring Power Apps capabilities into custom web apps built in a code-first IDE" (overview). You develop locally and run the same app in Power Platform. Any single-page app works; the docs name "React, Vue, and others".

What it is not: it's not a canvas app with some code in it, and it's not a PCF component. It's a whole app, and the whole app is yours. Code apps have been generally available since 5 February 2026.

Advantages and downsides

The trade: speed and hand-over for control and engineering. The left column is why a developer wants one, the right column is why a maker should think twice.

What you need

Last verified: 6 October 2026, with these versions:

Besides the tools:

• An environment with code apps switched on. Off by default. An admin turns it on in the Power Platform admin center: Environments > your environment > Settings > Product > Features > Power Apps code apps > Enable code apps.
• A premium licence for your users: Power Apps Premium, pay-as-you-go, an App Pass or auto-claim. Microsoft 365 isn't enough.
• An editor, Git and a coding agent if you want one. I used Claude Code in the Claude desktop app.

Canvas, model-driven, PCF and code apps side by side

Microsoft has no page that compares all four, so this is mine, built from the individual docs. PCF is in it because people ask, but it's a different kind of thing: a control inside an app, not an app.

Sources: model-driven overview, PCF overview, canvas offline, Power Apps mobile, licensing overview, code apps overview. "Runs on a phone" for code apps is my own test, not a documented feature: the docs don't mention Power Apps mobile at all.

The pieces of a code app

Microsoft's architecture page names four components: the client library (the "Power Apps SDK"), the generated models and services, power.config.json and the Power Apps host. Here they are in a project, and at run time.

The CLI. pa is the npm-based Power Apps CLI, with six command groups: pa app (init, run, push, add data sources and flows, share), pa auth, pa connection, pa connector, pa solution and pa telemetry (reference). From an empty folder to a published app:

npx degit github:microsoft/PowerAppsCodeApps/templates/vite app
cd app
npm install
pa auth login
pa app init --environment-id <environment-id> --display-name "TEST_Equipment Loan"
pa app run
npm run build
pa app push

power.config.json. pa app init writes it; your code never reads it. Mine, with the IDs taken out:

{
  "version": "1.0",
  "appId": null,
  "appDisplayName": "TEST_Equipment Loan",
  "region": "prod",
  "appType": "CodeApp",
  "environmentId": "<environment-id>",
  "description": "Sample app for the Code Apps, the Full Stack series",
  "buildPath": "./dist",
  "buildEntryPoint": "index.html",
  "localAppUrl": "http://localhost:3000",
  "logoPath": "Default",
  "connectionReferences": {},
  "databaseReferences": {}
}

appId stays null until the first pa app push, which also puts the app in a solution ("Adding the app to your preferred solution"). Every data source you add later lands in connectionReferences or databaseReferences, with a typed service in src/generated/.

The Vite plugin. powerApps() in vite.config.ts is the only Power Apps line in the template. When you run pa app run, it prints a "Local Play" link on apps.powerapps.com that loads your code from localhost:5173: local development goes through the real player, with real sign-in, from the first minute. The published result opens on a phone like any other app:

Build it, step by step

I built everything in this post with Claude Code. You don't need my whole brief to try it. This is the path from nothing to a running app, with what you need at each step and where to get it. Step 5 is the only one where the agent does the work.

1. Get an environment with code apps on

Where: the Power Platform admin center, by an admin. Environments > your environment > Settings > Product > Features > Power Apps code apps > Enable code apps. Use a development environment, not production: the app you're about to make is a test.

While you're there, copy the Environment ID: select the environment and look in the Details section (find your environment ID). You need it in step 3 and step 5.

2. Install the tools on your machine

• Node.js LTS from nodejs.org (the CLI needs version 22 or newer) and Git from git-scm.com.
• The Power Apps CLI, from npm:

npm install --global @microsoft/power-apps-cli

• A coding agent. I use Claude Code in the Claude desktop app; GitHub Copilot CLI works the same way for this. Any agent that can run commands in a folder will do.

3. Sign in once

pa auth login

A browser window opens; sign in with the account that has access to the environment from step 1. pa auth status shows who you're signed in as. The CLI keeps the sign-in, so the agent doesn't need your password and you don't give it one.

4. Make an empty folder and open the agent in it

Where: anywhere on your machine. The folder becomes the Git repository for the app, so pick a place you keep code. Start the agent in that folder.

5. Paste the prompt

Replace <environment-id> with the ID from step 1:

Prepare a Power Apps code app called "TEST_Equipment Loan" in this empty folder for environment <environment-id>. Prepare only: stop before `pa app push` and wait for my OK.

Rules:
- Use the current Microsoft Learn docs for code apps (learn.microsoft.com/power-apps/developer/code-apps) and the npm Power Apps CLI (`pa`). Don't use `pac code`. I'm already signed in with `pa auth login`.
- Start from Microsoft's template: `npx degit github:microsoft/PowerAppsCodeApps/templates/vite .` then `git init`.
- Run `pa app init` with the environment ID and the display name, then `npm install` (init adds a dev dependency).
- Replace the template's demo screen with one screen: a list of equipment (laptop, camera, test phone) with a "Request loan" button per item. No data source yet, keep the data in a local array.
- Keep `power.config.json` out of Git and commit a `power.config.example.json` with placeholders instead.
- Run it locally with `pa app run` in the background and give me the Local Play link.

I ran the first version of this prompt in an empty folder on my machine, with Claude Code. It took the agent 12 commands: it read the quickstart, pulled the template, ran pa app init, rewrote src/App.tsx into an equipment list with three items and a "Request loan" button each, added power.config.json to .gitignore, committed, started pa app run and handed me the Local Play link. npm run build and npm run lint both passed. Four things it ran into shaped the version above:

• "Publish" and "stop before push" in one prompt pull in two directions. The prompt now says "prepare" and puts the stop first.
• degit doesn't create a Git repository, so "keep it out of Git" needs a git init first.
• pa app init edits package.json: it adds @microsoft/power-apps-cli as a dev dependency. Run npm install after it, or the lockfile is stale.
• pa app run blocks the terminal. An agent has to run it in the background, or it waits forever.

Why the other rules are there:

• "Don't use pac code." Microsoft's own repo still tells agents the old way. The templates README says pac code init and docs/assets/AGENTS.md, a file written for coding agents, says pac code push. The Learn docs say those commands will be deprecated. An agent that only reads the repo picks the wrong CLI.
• "Keep power.config.json out of Git." It holds your environment and app IDs, and the template's .gitignore doesn't exclude it. When I built the sample app, my agent only caught that because my brief said "never commit environment IDs".
• The TEST_ prefix makes the app easy to find and delete afterwards.

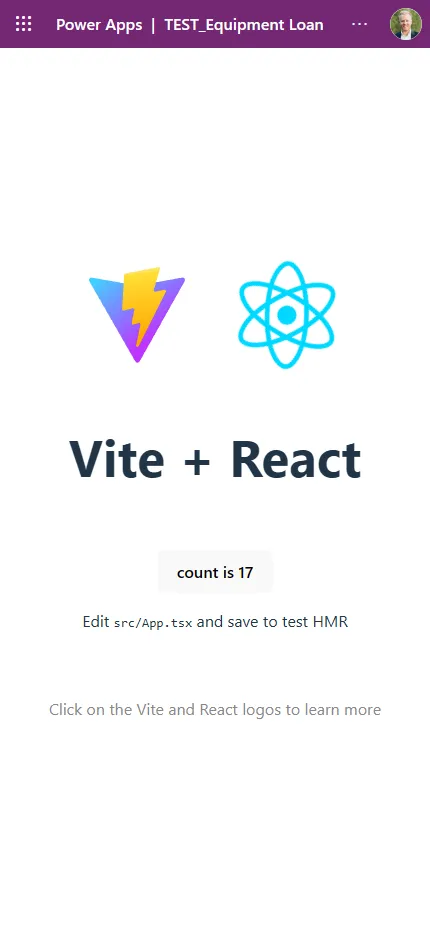

6. Open the Local Play link

Where: your browser, in the profile that's signed in to your tenant. The link is on apps.powerapps.com, and that page loads your code from localhost:5173, so Chrome and Edge may ask for permission to reach the local network. Allow it (quickstart). You're now looking at your app inside the real Power Apps player, with real sign-in. Edit src/App.tsx, save, and the page updates.

7. Publish, when you're happy

Tell the agent to go ahead, or run it yourself in the project folder:

npm run build
pa app push

The push prints the play link and puts the app in your preferred solution. From then on it's a normal app: find it at make.powerapps.com under Apps, share it from there, and open it on your phone. Every later change is the same two commands.

Limits and gotchas

From the documented limitations and the pages behind them:

• No Power Apps for Windows, no SharePoint forms, no Power Platform Git integration. You use your own Git repository instead.
• No Secure Implicit Connections yet, and the PowerBIIntegration function isn't supported yet.
• The app bundle is public. The SAS IP restriction and firewall setting don't apply. Use Conditional Access if you need to restrict access by location.
• Two connectors don't work: Excel Online (Business) and Excel Online (OneDrive). All others are supported.
• Dataverse has gaps: no FetchXML, no polymorphic lookups, no alternate keys yet (connect to Dataverse).
• Flows are limited to solution-aware instant flows with the Power Apps trigger (add flows).
• Embedding is iframe only, with the host added to frame-ancestors, and only for users in the same tenant (embed in an iframe).

And the ones you only find out by building, from my own run, Microsoft's issue tracker and people who went first:

• Local Play needs the right browser profile. The player on apps.powerapps.com loads your code from localhost, so sign in with the same profile, and allow the local network access prompt in Chrome or Edge (quickstart).
• The CSP blocks more than APIs. The default policy I saw on my app also has img-src 'self' data:, font-src 'self' and worker-src 'none'. So images from a CDN, fonts loaded from another domain and web workers fail until an admin allows them. Rajeev Pentyala hit it with connector icons from Microsoft's own CDN. And CSP changes "can take several minutes to propagate" (App Insights how-to).
• No environment variables for your own settings. "Environment variables aren't yet supported for code apps", says the same page. Keys per environment go in a Dataverse settings table, or you branch on getContext().
• Startup failures don't reach your telemetry. Application Insights "only captures telemetry after the app successfully loads". A blocked file or a failed initialisation shows up in Power Platform Monitor only.
• Users may keep an old version after a push. Issue #227 asked for a forced refresh; since April 2026 the player shows a "new version available" banner instead of swapping silently.
• Solutions can fail to export with a code app inside. Issue #467, open since 25 September 2026, is the second regression of that kind. If you deploy with pipelines, test the export before you depend on it.
• Flows aren't portable yet. pa app add flow binds to a connection, not a connection reference, so the binding doesn't survive a move to another environment (issue #461, open).
• Android cuts off the bottom of the app. The iframe uses 100vh, which includes the navigation bar (issue #364, open since June 2026). Keep your primary buttons away from the bottom edge.
• "The environment config does not match the current environment." Your power.config.json points at one environment and your CLI sign-in at another. Rajeev Pentyala documented the fix for pac; with pa, check pa auth status.
• Keep the Vite plugin. Vite writes absolute asset paths, which break on the Power Platform CDN. The template's powerApps() plugin fixes that; without it you need base: './' (Paul Bien's guide).
• Sharing the app isn't sharing the data. For flows, end users need a Dataverse role such as App Opener on top of the app share (add flows). Dataverse security roles still decide what they see.
• Old tooling bites. The old pac code push once corrupted every font and image by reading them as UTF-8 text. Fixed since, but one more reason to use pa.

When canvas is still the better choice

I'll keep building canvas apps. If the app is a handful of screens on top of SharePoint or Dataverse, and makers have to maintain it after I leave, canvas is faster to build and easier to hand over. The same goes for apps that need to work offline in Power Apps mobile or run in Power Apps for Windows, and for users who only have a Microsoft 365 licence. A code app starts to pay off when the design, the reuse of components or the source control matters more than the speed of the first version.

For admins

Code apps are off until you switch them on per environment, and you can do that at scale with environment groups and rules. Every user needs a premium licence or one of its alternatives. The content security policy is enforced per environment and blocks outbound calls by default, so every extra domain is your decision. The compiled app is public, so IP firewall rules don't cover it: use Conditional Access. The managed platform does apply: sharing limits, app quarantine, data policies at launch, Conditional Access per app, tenant isolation and health metrics all work for code apps.
